One platform.
All the volts.
The industry standard for high-voltage transmission — modular, field-proven, and designed for the most demanding grid applications worldwide. Same interrupter and drive across the entire voltage range.
Decades of continuous innovation.

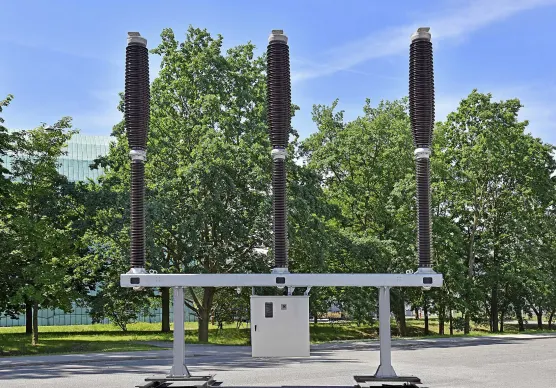

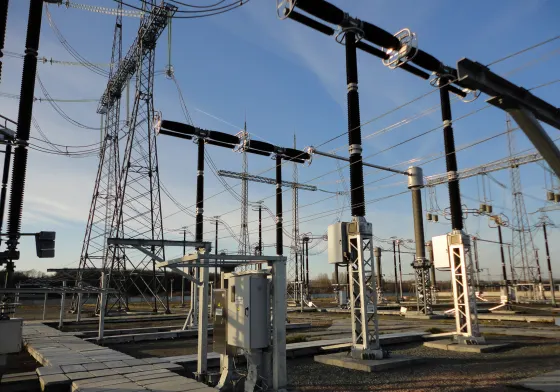

Siemens Energy 3AP live tank circuit breakers represent decades of continuous innovation in SF6 switching technology. The live tank design places the interrupter chamber at high potential, supported by porcelain or composite insulators.
The modular platform concept means the same interrupter unit, drive mechanism, and control system scale across the entire voltage range — from 72.5 kV to 800 kV — ensuring maximum reliability and minimum spare-parts inventory for utilities operating diverse fleets.
Six engineering advantages.
Modular Design
Same interrupter unit, drive mechanism, and control system across all voltage ratings — minimal spare parts, maximum flexibility.
Self-Blast Technology
Patented self-blast arc-quenching uses fault energy to assist interruption — reducing operating energy and mechanism stress.
Compact Footprint
Column-type design requires minimal ground space — ideal for substations with space constraints.
Spring Drive Mechanism
Maintenance-free spring drive with 10,000+ mechanical operations. No hydraulic oil, no leakage risk.
Wide Temperature Range
Reliable operation from −50 °C to +55 °C. Optional low-temperature heating for extreme climates.
Global Certification
IEC and IEEE standards. Type-tested at independent laboratories including KEMA and IPH.
Three frames. One family.
The 3AP platform is engineered as three mechanical frames — 3AP1, 3AP2, 3AP4 — that share interrupter design, drive, and controls, covering the full utility voltage span.
Pre-Insertion Resistors (PIR)
For line and shunt reactor switching applications, 3AP circuit breakers can be equipped with pre-insertion resistors (PIR) to limit switching overvoltages and inrush currents. Available for voltages 245 kV and above.
- Reduces switching overvoltages during line energization
- Limits inrush currents for transformer and reactor switching
- Modular resistor design — easy retrofitting to existing 3AP frames
- Proven performance in thousands of installations worldwide
From bus-tie to generator duty.
Transmission networks
Overhead line and cable switching in HV transmission grids.
Substation bus-tie
Coupling and sectionalizing duty in transmission substations.
Shunt reactor switching
Reactor bank duty with PIR option to control switching transients.
Capacitor bank
Back-to-back capacitor bank switching with dedicated duty rating.
Generator CB
Power-plant generator circuit breaker application up to 420 kV.
EHV & UHV
Long-line switching at 550 kV / 800 kV with 3AP4 frame.
